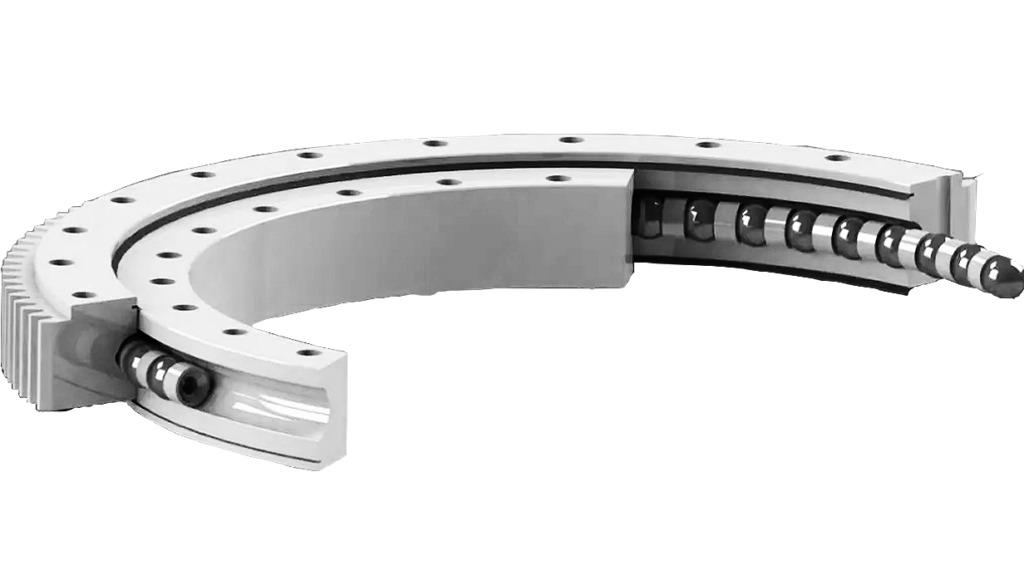

VLU slewing bearing 834×1048mm

VLU slewing bearing 834×1048mm

Understanding the Design Load Environment

Solar tracking arrays frequently operate in coastal environments where rotational torque must remain precise despite salt spray and occasional gust loading. When specifying a rotary support for these systems, engineers often default to generic catalog numbers without validating the actual operating envelope. A VLU configuration handles continuous yaw adjustment, but misjudging axial thrust or radial preload can cause premature raceway fatigue. Before committing to a purchase, you need to map your machine’s duty cycle against the bearing’s rated capacity. This prevents over-engineering and keeps bill-of-material costs realistic.

Verifying Mechanical Fit and Tolerance Classes

Dimensional accuracy dictates how smoothly the assembly integrates into your housing and shaft interface. The outer diameter and inner diameter must align with your machined shoulders to prevent unintended preload or excessive clearance. Tolerance grades on the raceways determine friction levels and rotational stiffness. Misaligned mounting patterns force field technicians to rework bolt circles, delaying commissioning. Proper dimensional alignment eliminates these bottlenecks entirely.

Use this verification checklist when reviewing vendor documentation:

• Confirm bore and seat diameters match your CAD models exactly
• Validate surface finish requirements for mating flanges
• Check if mounting hole positions are drilled and tapped per ISO standards
• Review thermal expansion coefficients if ambient temperature swings exceed forty degrees Celsius

Cross-Checking Load Ratings and Series Specifications

Catalog numbers streamline procurement, but raw performance metrics never lie. The series designation tells you immediately how the rolling elements interact with the raceways. In this configuration, four-point contact geometry distributes combined loads efficiently across a single row of balls. You must compare your maximum expected forces against both static and dynamic limits. Static ratings protect against deformation during installation or sudden impact, while dynamic ratings govern lifespan under continuous rotation. Refer to standardized tables or our bearing number reference page to decode historical data correctly. For broader alternatives, explore our Light load slewing bearings (No gear type) category.

Specification Parameter	Value
Model Reference	VLU 200944
Inner Diameter	834 mm
Outer Diameter	1048 mm
Overall Thickness	56 mm
Radial Dynamic Rating	170,000 N
Radial Static Rating	250,000 N
Axial Dynamic Rating	188,000 N
Axial Static Rating	670,000 N

Finalizing Order Details and Supply Timeline

Lead time directly impacts production scheduling. Standard rings typically ship within ten business days, but custom machining or specific lubrication requirements extend that window. Always request a formal quotation with confirmed dispatch dates before releasing payment. Supply chain volatility makes early procurement vital. Lock in raw material availability by submitting inquiry forms during Q1 planning cycles rather than waiting for urgent breakdown replacements. Clarify packaging methods for heavy components, since fifty-four kilograms demands proper crate stabilization during transit. Documentation like material certifications and inspection reports should accompany every shipment. At FIJ Bearing, we prioritize transparent communication throughout the quoting process, ensuring your procurement team has accurate timelines and verified technical data before manufacturing begins.

Request a quote for the VLU slewing ring through our Fij Bearing portal today.
