Precision Spindle Bearings - H70 - 2RZC/P4 Double - Sealed Angular Contact Ball Bearing

Category: Precision Bearings · 30 models

Home / Products / Precision Bearings / Precision Spindle Bearings / H70 - 2RZC/P4 Double - Sealed Angular Contact Ball Bearing

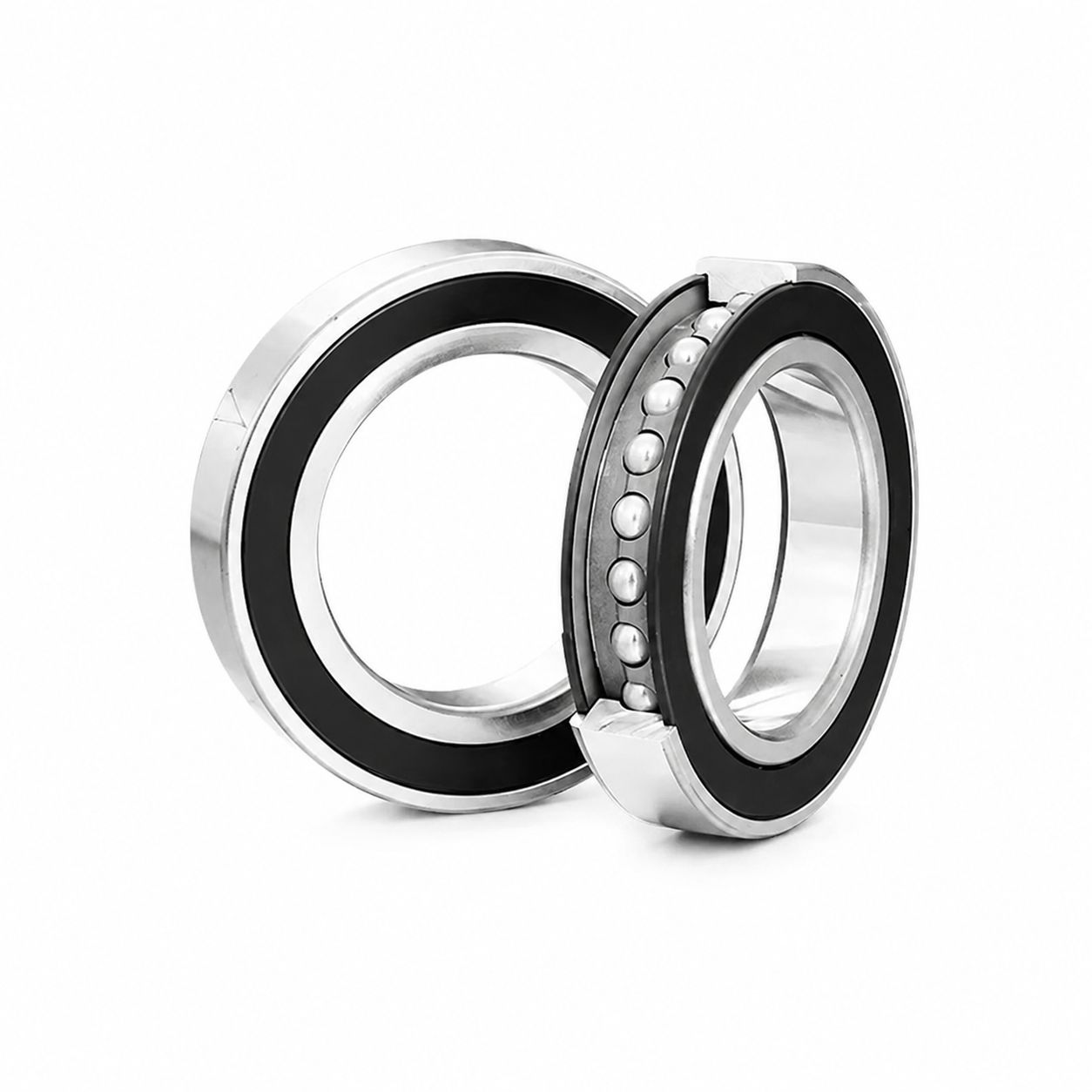

H70 - 2RZC/P4 Double - Sealed Angular Contact Ball Bearing

Browse all models in the H70 - 2RZC/P4 Double - Sealed Angular Contact Ball Bearing series. Click a model to view detailed specifications and request a quotation.

Bearing Model Boundary Dimensions α=15°(C) α=25°(AC) Cage Bearing Model
Load Rating Limiting Speed Load Rating Limiting Speed
dDB CrC0r GreaseOil CrC0r GreaseOil
mm kN r/min kN r/min
H7000C - AC - P4 - 2RZ 10 26 8 3.4 1.5 79000 129000 3.3 1.4 66000 109000 Bakelite H7000C - AC - P4 - 2RZ
H7001C - AC - P4 - 2RZ 12 28 8 3.8 1.7 69000 109000 3.6 1.6 59000 89000 Bakelite H7001C - AC - P4 - 2RZ
H7002C - AC - P4 - 2RZ 15 32 9 4.4 2.2 66000 99000 4.2 2.1 55000 84000 Bakelite H7002C - AC - P4 - 2RZ
H7003C - AC - P4 - 2RZ 17 35 10 5.2 2.5 55000 84000 5.0 2.4 49000 74000 Bakelite H7003C - AC - P4 - 2RZ
H7004C - AC - P4 - 2RZ 20 42 12 7.4 3.9 49000 74000 7.0 3.8 42000 62000 Bakelite H7004C - AC - P4 - 2RZ
H7005C - AC - P4 - 2RZ 25 47 12 8.4 4.8 42000 62000 8.0 4.6 35000 52000 Bakelite H7005C - AC - P4 - 2RZ
H7006C - AC - P4 - 2RZ 30 55 13 9.5 6.2 37000 55000 9.0 5.9 33000 49000 Bakelite H7006C - AC - P4 - 2RZ
H7007C - AC - P4 - 2RZ 35 62 14 11.2 7.9 37000 55000 10.7 7.5 33000 49000 Bakelite H7007C - AC - P4 - 2RZ
H7008C - AC - P4 - 2RZ 40 68 15 09.9 19.1 18000 31000 18.9 18.2 16000 27000 Bakelite H7008C - AC - P4 - 2RZ
H7009C - AC - P4 - 2RZ 45 75 16 26.7 25.3 16000 27000 25.4 24.1 15000 25000 Bakelite H7009C - AC - P4 - 2RZ
H7010C - AC - P4 - 2RZ 50 80 16 27.6 27.5 15000 25000 26.2 26.2 14000 23000 Bakelite H7010C - AC - P4 - 2RZ
H7011C - AC - P4 - 2RZ 55 90 18 36.7 37.1 13000 21000 34.8 35.3 12000 19000 Bakelite H7011C - AC - P4 - 2RZ
H7012C - AC - P4 - 2RZ 60 95 18 37.8 40 13000 21000 35.8 38 11000 18000 Bakelite H7012C - AC - P4 - 2RZ
H7013C - AC - P4 - 2RZ 65 100 18 38.9 42.9 12000 19000 36.8 40.7 10000 17000 Bakelite H7013C - AC - P4 - 2RZ
H7014C - AC - P4 - 2RZ 70 110 20 49.9 55.5 11000 18000 47.2 52.7 9000 16000 Bakelite H7014C - AC - P4 - 2RZ
H7015C - AC - P4 - 2RZ 75 115 20 51.3 59.2 10000 17000 48.5 56.2 8500 15000 Bakelite H7015C - AC - P4 - 2RZ
H7016C - AC - P4 - 2RZ 80 125 22 61.6 70.4 9000 16000 58.3 66.9 8000 14000 Bakelite H7016C - AC - P4 - 2RZ
H7017C - AC - P4 - 2RZ 85 130 22 63.6 75 8500 15000 59.9 71.3 7500 13000 Bakelite H7017C - AC - P4 - 2RZ
H7018C - AC - P4 - 2RZ 90 140 24 66.9 84 8000 14000 63.2 79.7 7000 12000 Bakelite H7018C - AC - P4 - 2RZ
H7019C - AC - P4 - 2RZ 95 145 24 79.1 97.6 7500 13000 74.8 92.7 6500 11000 Bakelite H7019C - AC - P4 - 2RZ
H7020C - AC - P4 - 2RZ 100 150 24 81.2 103.3 7000 12000 76.7 98 6000 10000 Bakelite H7020C - AC - P4 - 2RZ
H7021C - AC - P4 - 2RZ 105 160 26 93.9 118.2 6500 11000 88.8 112.2 6000 10000 Bakelite H7021C - AC - P4 - 2RZ
H7022C - AC - P4 - 2RZ 110 170 28 110.4 139.8 6000 10000 104.4 132.8 5700 9000 Bakelite H7022C - AC - P4 - 2RZ
H7024C - AC - P4 - 2RZ 120 180 28 112.7 148.7 6000 10000 106.3 141.1 5700 9000 Bakelite H7024C - AC - P4 - 2RZ
H7026C - AC - P4 - 2RZ 130 200 33 144.8 190.8 5700 9000 136.8 181.0 5000 8000 Bakelite H7026C - AC - P4 - 2RZ
H7028C - AC - P4 - 2RZ 140 210 33 148.7 202.6 5000 8000 140.4 192.2 4600 7500 Bakelite H7028C - AC - P4 - 2RZ
H7030C - AC - P4 - 2RZ 150 225 35 168.4 232.5 4600 7500 159.1 220.6 4000 6500 Bakelite H7030C - AC - P4 - 2RZ
H7032C - AC - P4 - 2RZ 160 240 38 189.1 264.5 4000 6500 178.6 251.0 3800 6000 Bakelite H7032C - AC - P4 - 2RZ
H7034C - AC - P4 - 2RZ 170 260 42 205.6 299.3 3800 6000 194.2 284.0 3300 5300 Bakelite H7034C - AC - P4 - 2RZ
H7036C - AC - P4 - 2RZ 180 280 46 229.5 352.1 3500 5700 216.8 334.1 3000 5000 Bakelite H7036C - AC - P4 - 2RZ
