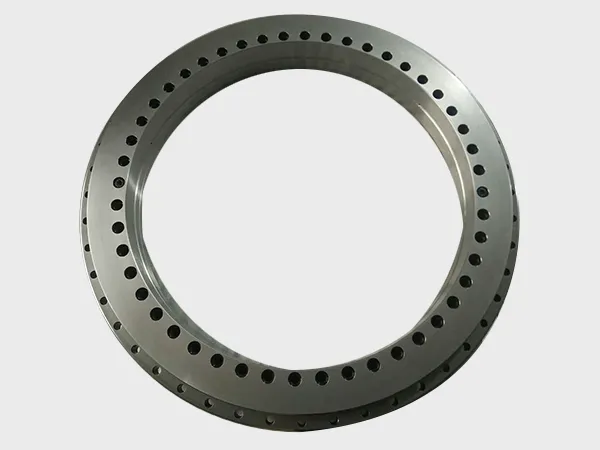

Crossed Roller Bearings - YRT Series Crossed Roller Bearings

Browse all models in the YRT Series Crossed Roller Bearings series. Click a model to view detailed specifications and request a quotation.

Bearing Model	Boundary Dimensions & Mounting Holes (mm)
Bearing Model	d	D	H	H1	H2	C	d1	dn	dm	Inner Holes	Outer Holes
YRT100	100	185	38	25	13	12	160	112	170	5.6	5.6
YRT1030	1030	1300	145	92.5	52.5	40	1215	1075	1255	18.5	18.5
YRT120	120	210	40	26	14	12	184	135	195	7	7
YRT1200	1200	1490	164	108	56	52	1410	1240	1445	18.5	18.5
YRT150	150	240	40	26	14	12	214	165	225	7	7
YRT180	180	280	43	29	14	15	244	194	260	7	7
YRT200	200	300	45	30	15	15	274	215	285	7	7
YRT260	260	385	55	36.5	18.5	18	345	280	365	9.3	9.3
YRT325	325	450	60	40	20	20	415	342	430	9.3	9.3
YRT395	395	525	65	42.5	22.5	20	486	415	505	9.3	9.3
YRT460	460	600	70	46	24	22	560	482	580	10	10
YRT50	50	126	30	20	10	10	105	63	116	5.6	5.6
YRT580	580	750	90	60	30	30	700	610	720	11.4	11.4
YRT650	650	870	122	78	44	34	800	680	830	14	14
YRT80	80	146	35	23.35	11.65	12	130	92	138	5.6	4.6
YRT850	850	1095	124	80.5	43.5	37	1018	690	1055	18.5	18.5
YRT950	950	1200	132	86	46	40	1130	990	1160	18.5	18.5
