Why Thin Section Bearings Are Critical for Robotics and Aerospace

Modern robotics and aerospace equipment are governed by two conflicting demands: increasing functional capability and decreasing size, weight, and power consumption. Every gram saved in a robot arm or satellite component translates to faster motion, lower energy consumption, extended battery life, or reduced launch cost. Thin section bearings address this challenge directly. Their large bore diameter relative to a very small cross-sectional width allows designers to save space and weight without sacrificing precision. In applications such as robotic joints, aerospace guidance systems, and satellite mechanisms, thin section bearings have become essential components.

What Are Thin Section Bearings?

A thin section bearing is defined by its cross-sectional dimensions, which remain small even as the bore diameter increases. Unlike conventional bearings, where the cross-section grows proportionally with bore size, thin section bearings maintain a constant thin wall across a wide range of diameters. This construction provides a large hollow center that can accommodate shafts, wiring, pneumatic lines, fiber optics, or optical pathways while keeping the overall envelope compact. The reduced mass lowers moment of inertia, which is particularly important for high-acceleration robotic arms and aerospace gimbals. Thin section bearings are typically manufactured as deep groove ball bearings, angular contact bearings, or four-point contact bearings, depending on the load requirements.

Thin Section Bearing Series: KAA, KA, KB, KC, and KD

Thin section bearings are classified by series based on cross-sectional size. The KAA, KA, KB, KC, and KD series provide a progressive range of load capacity and stiffness, allowing engineers to select the best balance between weight savings and mechanical performance for each application.

KAA Series

The KAA series represents the smallest cross-section in the standard thin section family and is sometimes referred to as super thin section. These ultra-light bearings are ideal for applications where space and weight are the dominant constraints. They are commonly used in miniature robotic joints, medical devices, laboratory automation, and small satellite mechanisms. Despite their small section, KAA bearings are manufactured to precision tolerances and can support light radial and axial loads with very low running torque. Designers often choose the KAA series when the primary goal is to minimize the overall diameter and mass of a rotary joint.

KA Series

The KA series is a general-purpose thin section bearing with slightly more cross-section than the KAA series. It offers an excellent compromise between low weight and adequate load capacity for robotics arms, pick-and-place systems, automated inspection equipment, and collaborative robots. The KA series is frequently specified in automated manufacturing cells where multiple axes must move quickly and accurately. Its low profile allows adjacent structural members to be positioned closer together, reducing the overall size and inertia of the robot. Sealed KA bearings can be used in environments where light contamination is present without requiring external sealing arrangements.

KB Series

The KB series provides greater load capacity and stiffness while retaining a thin cross-section. It is well suited to precision rotary tables, indexing equipment, machine tool turrets, and medium-duty robotic joints. The KB series can handle higher moment loads than the KA series, making it useful in applications where the bearing supports a cantilevered arm or payload at a distance from the joint center. In aerospace, KB series bearings are used in control surface actuators, instrument positioning systems, and lightweight gimbals where the bearing must resist deflection under off-center loads.

KC Series

The KC series has a larger cross-section and is designed for applications that require higher radial and axial load capacity. It is commonly found in aerospace guidance systems, stabilization platforms, electro-optical turrets, and medium-sized gimbals where the bearing must maintain precise orientation under dynamic loads. The increased stiffness of the KC series helps minimize angular deflection, which is critical for targeting, tracking, navigation accuracy, and imaging stability. KC series bearings can be used in pairs or as part of a duplex arrangement to control preload and improve system stiffness.

KD Series

The KD series has the largest cross-section among the KAA through KD family and offers the highest stiffness and load capacity for a thin section bearing. It is used in demanding applications such as satellite antenna pointing mechanisms, large optical systems, radar pedestals, and defense aerospace platforms. The KD series retains the space-saving advantages of thin section design while providing the robustness needed for long-term service in harsh environments. For these applications, bearings are often supplied with special lubrication, corrosion-resistant materials, and precision preload to ensure reliable operation over many years without maintenance.

Metric and Super Thin Section Bearings

Metric thin section bearings are dimensioned according to ISO standards, simplifying global sourcing, interchangeability, and integration with metric shafts and housings. They are available in open, sealed, and shielded configurations and can be supplied with steel, brass, or polymer cages. Super thin section bearings take the concept further by reducing the cross-section to an absolute minimum. These bearings are used in the most weight-sensitive applications, such as small satellite reaction wheels, deployable solar array mechanisms, and compact robotic end effectors. The challenge with super thin section bearings is to maintain raceway accuracy and ring stiffness despite the thin walls; precision manufacturing and heat treatment are essential to prevent ring deformation under load or during mounting.

Why Thin Section Bearings Excel in Robotics

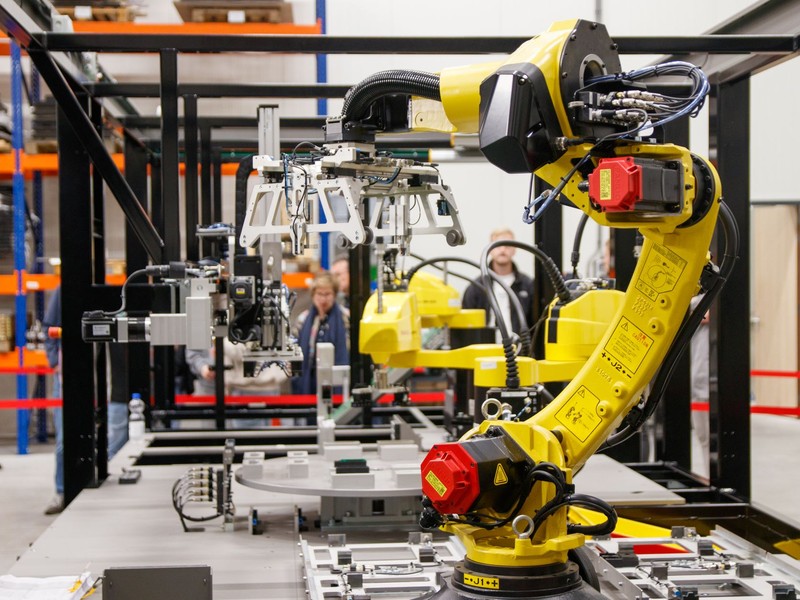

Robotic systems require bearings that combine low friction, low weight, and high positional accuracy. In a six-axis articulated robot, each joint adds mass and inertia that the subsequent motors must overcome. Thin section bearings reduce joint size and weight, allowing faster acceleration, higher payload capacity, and lower power consumption. Their large bore also makes it easier to route cables, hoses, and sensor lines through the center of the joint, which simplifies machine design and improves reliability by reducing external cabling that can snag or wear.

In precision robotics, such as semiconductor handling, electronics assembly, and surgical robots, thin section bearings provide the runout control needed for accurate positioning. They are often paired with harmonic drives, direct-drive torque motors, or planetary gearboxes to create compact rotary joints. Low torque variation helps maintain smooth motion profiles, reducing vibration and improving repeatability. For collaborative robots that operate near human workers, low-friction thin section bearings contribute to compliant, predictable motion and safer force-limited operation. The KAA and KA series are especially popular in small collaborative robots, while the KB and KC series appear in larger industrial arms and precision stages.

Why Thin Section Bearings Are Essential in Aerospace

Aerospace applications impose severe constraints on weight, volume, and reliability. Thin section bearings are used throughout aerospace guidance systems, satellite mechanisms, and aircraft control systems. In satellite solar array drives, they allow large deployed structures to rotate with minimal friction while keeping the drive mechanism light. In antenna pointing systems, thin section bearings provide the stiffness and precision needed to maintain beam alignment over long periods in orbit. The reduced weight of the bearing assembly also reduces the torque required from the drive motor, allowing smaller motors and less power consumption.

Reaction wheels and momentum wheels used for satellite attitude control depend on thin section bearings to support high-speed rotors with minimal power loss and stable vibration characteristics. The bearings must operate reliably in vacuum conditions, often with specialized lubrication such as solid film, low-outgassing grease, or dry lubricants to prevent contamination of optical and electronic components. The reduced mass of thin section bearings lowers gyroscopic effects and improves the dynamic response of the control system. For aerospace guidance systems, including inertial measurement units, gyroscopes, stabilized platforms, and seeker gimbals, the angular stiffness and low runout of thin section bearings directly influence navigation accuracy and target tracking performance.

Conclusion

Thin section bearings are not simply smaller versions of conventional bearings; they are purpose-engineered components that enable compact, lightweight, and precise motion systems. The KAA, KA, KB, KC, and KD series offer a graded range of performance, from ultra-light miniature mechanisms to stiff, high-capacity aerospace platforms. Metric and super thin section bearings further extend design freedom for robotics and aerospace engineers. For applications where every millimeter and every gram matters, FIJ precision thin section bearings provide the reliability, precision, and application expertise that modern robotics arms, aerospace guidance systems, and satellite mechanisms require.
