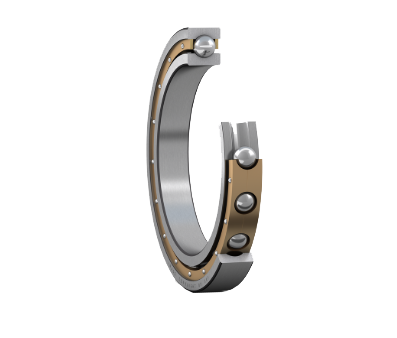

CSXG080-VK-HLE four-point contact ball bearing 8×10mm
Where the CSXG080-VK-HLE earns its place
A packaging machine builder is reworking a low-profile rotary indexing head. The existing pocket gives only 1 inch of axial room, but the shaft uses an 8 inch nominal bore and the housing needs a 10 inch seat. The design team specifies a thin-section four-point contact ring because it can take combined radial, thrust, and moment loads without adding stack height. On the shop floor, that choice moves the buying question from whether the size is available to whether every interface dimension matches the drawing.
At a glance
- Field: Value
- Model number: CSXG080-VK-HLE
- Bearing type: Thin section four-point contact ball bearings
- Inside diameter (d): 8 inch
Procurement teams comparing this model should start with the Thin section four-point contact ball bearings category to see neighboring sizes, but OD alone is not enough to select a substitute. The bore, width, shoulder geometry, and suffix details all need to line up with the mating parts.
Specs to verify before a PO is released
The table below reflects the current catalog data for this size. Confirm these values against the customer drawing before releasing a purchase order, especially if the drawing was converted from metric to inch or the reverse.
| Field | Value |
|---|---|
| Model number | CSXG080-VK-HLE |
| Bearing type | Thin section four-point contact ball bearings |
| Inside diameter (d) | 8 inch |
| Outside diameter (D) | 10 inch |
| Thickness width (B) | 1 inch |
| Boundary dimensions (d × D × B) | 8 × 10 × 1 inch |
| Weight | 2.95 kg |
The 2.95 kg weight is useful for packing and freight estimates, but it is not a fit check. The article title uses the common 8×10mm search shorthand, while the data sheet for CSXG080-VK-HLE is inch-based: 8 inch bore, 10 inch outside diameter, and 1 inch width. Make the governing unit system explicit on the PO so a supplier does not quote from a metric interpretation. Also confirm whether the required tolerance class, cage style, and lubrication are stated on the inquiry; those details can change the price and delivery even when the boundary dimensions are unchanged.
Fit, tolerance, and mounting checks that affect performance
A four-point contact ring can carry axial load in both directions and radial load, but only if the mating faces are flat and the preload is correct. On a thin-section bearing, a burr or soft housing can distort the ring and show up as torque variation or raceway noise. Ask for the inspection plan before the parts are packed.
- Verify shaft and housing fits against the drawing; thin-section rings deflect more when seat tolerance is loose.
- Check shoulder heights, corner radii, and clamping-face flatness; 1 inch width leaves little room for fillet interference.
- Confirm the four-point contact load direction and preload; this is not a drop-in for a deep groove ball bearing.
- Request dimensional inspection for bore, outside diameter, width, and runout, and state the tolerance class on the PO.
- Confirm lubrication path, sealing, and cage style if washdown, high contamination, or high-speed operation is involved.
Before approving an alternate or interpreting the VK-HLE suffix, use the bearing number reference to check how the model is structured. Suffix differences can cover internal clearance, cage, or special feature details that are not visible from the boundary dimensions.
Lead time, documentation, and quote request
Lead time should be quoted from drawing approval, not from inquiry date. Ask the supplier to state the inspection report, material certificate, and packing method included with the shipment. For a precision thin-section bearing, protective packing and rust prevention matter as much as the production schedule.
If the application has high axial load or a special mounting arrangement, share the load case and mating drawing with FIJ Bearing before the order is finalized. A short technical review can prevent a costly substitution after the housing is already machined. For repeat orders, ask for a stock reservation or scheduled release plan so the 1 inch width and 10 inch OD are not re-quoted from a different lot.
Request a quote from FIJ for CSXG080-VK-HLE with your drawing, quantity, required delivery date, and any inspection documentation you need.
