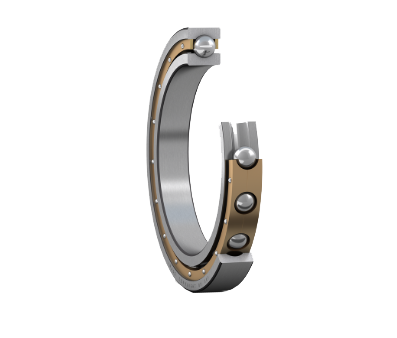

5303C2 angular contact ball bearing 17×47mm
Addressing Shaft Misalignment and Vibration
Unchecked axial vibration quickly destroys rotating assemblies. When paired loads shift unpredictably, outer ring seats loosen and inner races fret prematurely. The 5303C2 resolves this fundamental instability through its inherent dual-race geometry. Distributing combined forces across two symmetrical contact angles stabilizes shaft positioning without requiring heavy auxiliary support brackets. This configuration absorbs shock impulses that would otherwise crack housings.
At a glance
- Model Designation: 5303C2
- Bearing Type: Double row angular contact ball bearings
- Inner Diameter: 17 mm
- Outer Diameter: 47 mm
Dual-Race Fatigue and Edge Loading
Rolling element spalling rarely originates inside the balls themselves. Failure typically begins at raceway edges where hydrodynamic lubricant films collapse under eccentric loading conditions. Our pressed steel cage maintains precise ball spacing, effectively preventing skid marks during high-torque startup transients. If audible grinding coincides with temperature spikes, inspect the bore fit immediately. A loose cylindrical bore permits micro-motion that accelerates fatigue cracking. Proper interference selection eliminates edge stress concentrations long before propagating cracks form. Cross-referencing the official bearing number reference confirms how the C2 clearance modifier optimizes stiffness for tighter mechanical envelopes.
Thermal Expansion and Speed Boundaries
Rotational limits strictly dictate maintenance windows. Operating continuously above 9810 r/min generates excessive viscous friction, while exceeding 12795 r/min risks centrifugal separation of the rolling elements. Accelerated heat buildup softens cage materials and drastically reduces grease viscosity. Monitor surface temperatures closely when approaching operational ceilings. If thermal runaway occurs, reduce lubrication frequency rather than injecting aggressive coolants, which frequently wash away critical anti-wear additives. Always align the 5303C2 axes carefully during mounting to preserve calculated preload stability.
Core Engineering Parameters
Baseline ratings prevent catastrophic overload events during peak duty cycles. Engineers must dynamically match load profiles against actual application demands rather than relying on theoretical maximums. Verify dimensional compatibility alongside structural limits before integrating these components into your assembly line.
| Model Designation | 5303C2 |
|---|---|
| Bearing Type | Double row angular contact ball bearings |
| Inner Diameter | 17 mm |
| Outer Diameter | 47 mm |
| Width / Thickness | 22.2 mm |
| Basic Dynamic Load Rating (Radial) | 22888 N |
| Basic Static Load Rating (Radial) | 11988 N |
| Reference Speed | 9810 r/min |
| Limiting Speed | 12795 r/min |
Field Diagnosis and Maintenance Strategy
Real-world failures usually trace back to installation negligence rather than material defects. Housing squareness directly impacts load distribution, meaning even minor machining deviations create uneven stress patterns. When evaluating alternatives in our Double row angular contact ball bearings category, prioritize preload consistency over raw volumetric specs. At FIJ Bearing, we validate every production lot against these exact failure scenarios to guarantee reliable field performance. Contact FIJ engineering to request a quote for immediate order fulfillment.
